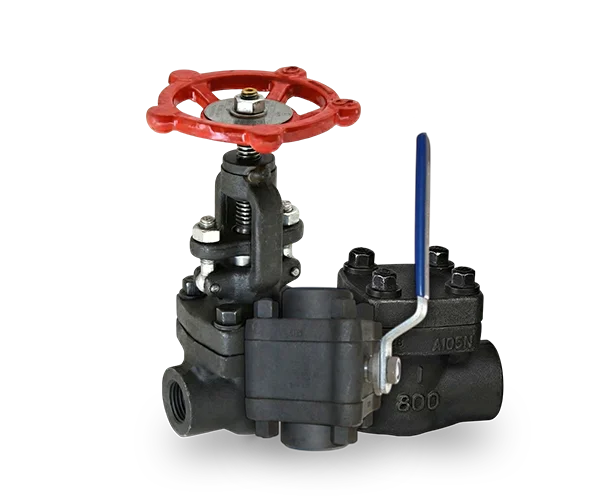

VALSTEER Forged Steel Valves : High-Pressure Solutions for Compact Installations
Phoenix ValSteer offers a range of Forged Steel Valves, including Gate, Globe, and Check (Non-Return) Valves, designed and manufactured to API 602 standard. These valves are ideal for smaller pipelines up to 50NB, providing a compact, high-pressure solution suitable for a variety of applications. Available with threaded or socket weld ends, our valves feature hard-faced trim material for perfect sealing and longer life, along with a precisely machined and lapped backseat for in-stream gland packing replacement in Gate and Globe Valves.

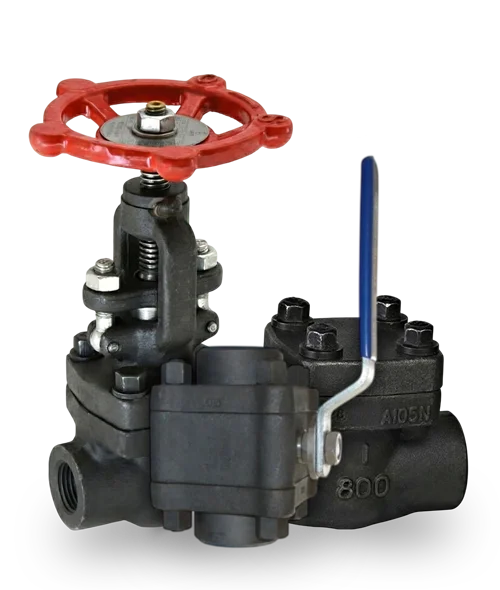

Our VALSTEER Forged Steel Valve Ranges
Forged Steel Gate Valve

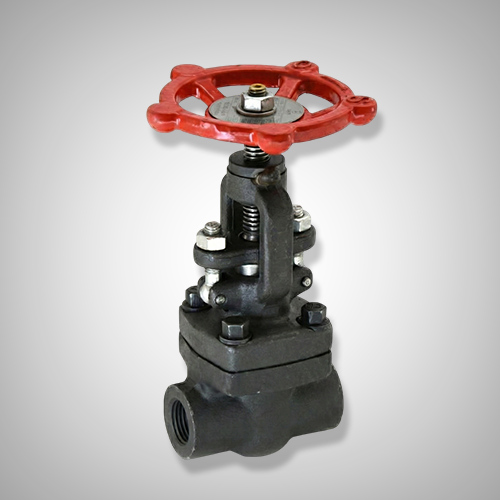

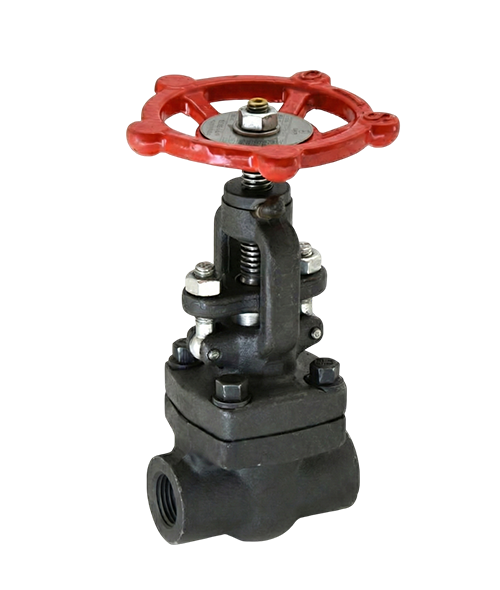

Forged Steel Globe Valve

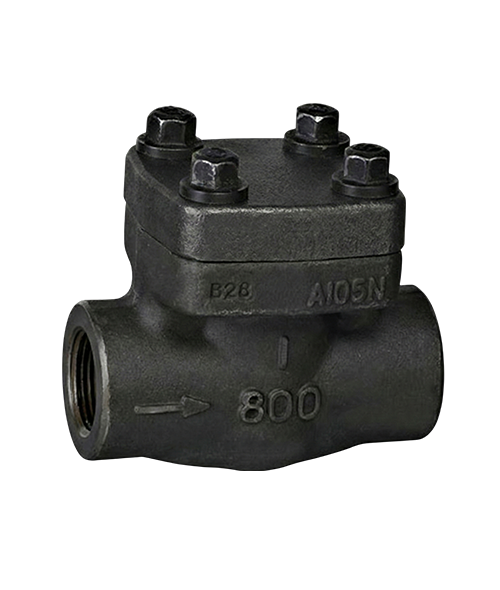

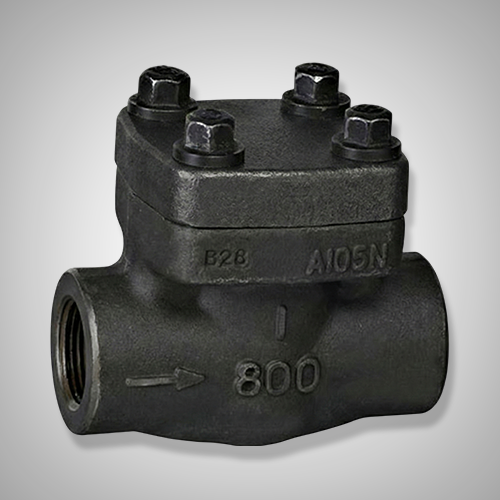

Forged Steel Check Valve

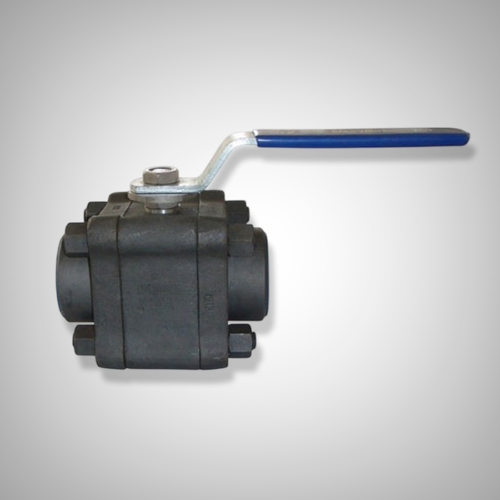

Forged Steel Ball Valve
Size
DN15-DN50
Pressure Rating
150#, 300#, 600#, 900#, 1500#
Design Standard
API 602
Design Type
Bolted Bonnet, Welded Bonnet
End Connection
Threaded, Socket Weld, Butt Weld
Wedge/Disc Type
Solid/Swivel
MOC
| BODY – BONNET | SEAT/DISC | STEM |
|---|---|---|
| CAST CARBON STEEL ASTM A216 GR.WCB/WCC | 13% Cr. S.S. | A 182 F6 |
| CAST STEEL ASTM A352 GR LCB AND LCC | A351 CF8 | A 182 F304 |
| ALLOY STEEL ASTM A217 GR WC1, WC4, WC5, WC6, WC9, WC11, C5 & C12 | 13% Cr. S.S/CF8/CF8M | A182 F6/F304/F316 |
| S.S 304/304L ASTM A351 GR.CF8/CF3 | A351 Gr. CF8/CF3 | A182 F304/304L |
| S.S 316/316L ASTM A351 GR.CF8M/CF3M | A351 Gr. CF8M/CF3M | A182 F316/316L |
| DUPLEX AND SUPER DUPLEX S.S. ASTM A 995 Gr. 1A, 1B, 1C, 2A, 3A, 4A, 5A, 6A | DUPLEX/SUPER DUPLEX S.S TO SUIT BODY | DUPLEX/SUPER DUPLEX S.S. |
| SUPER ALLOY STEEL- HASTELLOY Gr. B & C | HASTELLOY Gr. B & C | HASTELLOY Gr. B & C |
| INCONEL ASTM B564 UNS N06625 & 600 | UNS N06625 & 600 | UNS N06625 & 600 |
| FORGED ALLOY STEEL- ASTM A182 F11, F22 etc. | A182 F6/F304/316 | A182 F6/F304/316 |
| FORGED DUPLEX & SUPER DUPLEX STAINLESS STEEL ASTM A182 F51, F53, F555 etc. | A182 F51/F53/F55 etc. | A182 F51/F53/F55 etc. |
| FORGED STAINLESS STEEL ASTM A182 F304/304L/ F316/316L | F304/304L/F316/316L | F304/304L/F316/316L |
| DUCTILE IRON/SG IRON/C.I. OF DIFFERENT GRADES | 13%CR.SS/CF8/CF8M | A182 F6/F304/F316 |
Salient Features of VALSTEER Forged Steel Valves
- Compact Forged Body: Requires minimal installation space, making it ideal for tight configurations.
- Maximum Safety and Economy: Designed for high-pressure and temperature applications, ensuring reliability and cost-effectiveness.
- Precision Engineering: Features weld-deposited or press-fitted seat rings for enhanced durability and performance.
- Flexible Design Options: Available with seal welded or bolted bonnet designs to suit various application needs.
- Maintenance-Friendly: Easy to service and maintain, ensuring long-term operational efficiency.
Why Choose VALSTEER Forged Steel Valves ?
- Innovative Solutions: VALSTEER Forged Steel Valves are designed with the latest technology to meet and exceed industry standards.
- Quality Assurance: ISO 9001:2015 certified, we guarantee the highest quality and reliability in all our products.
- Customization Available: We offer tailored solutions to meet your specific operational requirements, ensuring optimal performance.
